Field Recorder Zoom F1-LP

Professional Audio. Up Close. The Zoom F1 Field Recorder + Lavalier Mic is the perfect solution for videographers who need to capture the nuance of every word with professional quality audio.

Sound & Story

The F1 Field Recorder + Lavalier Mic completes your video’s story by providing outstanding audio no matter where your production takes you.

Capture Every Nuance

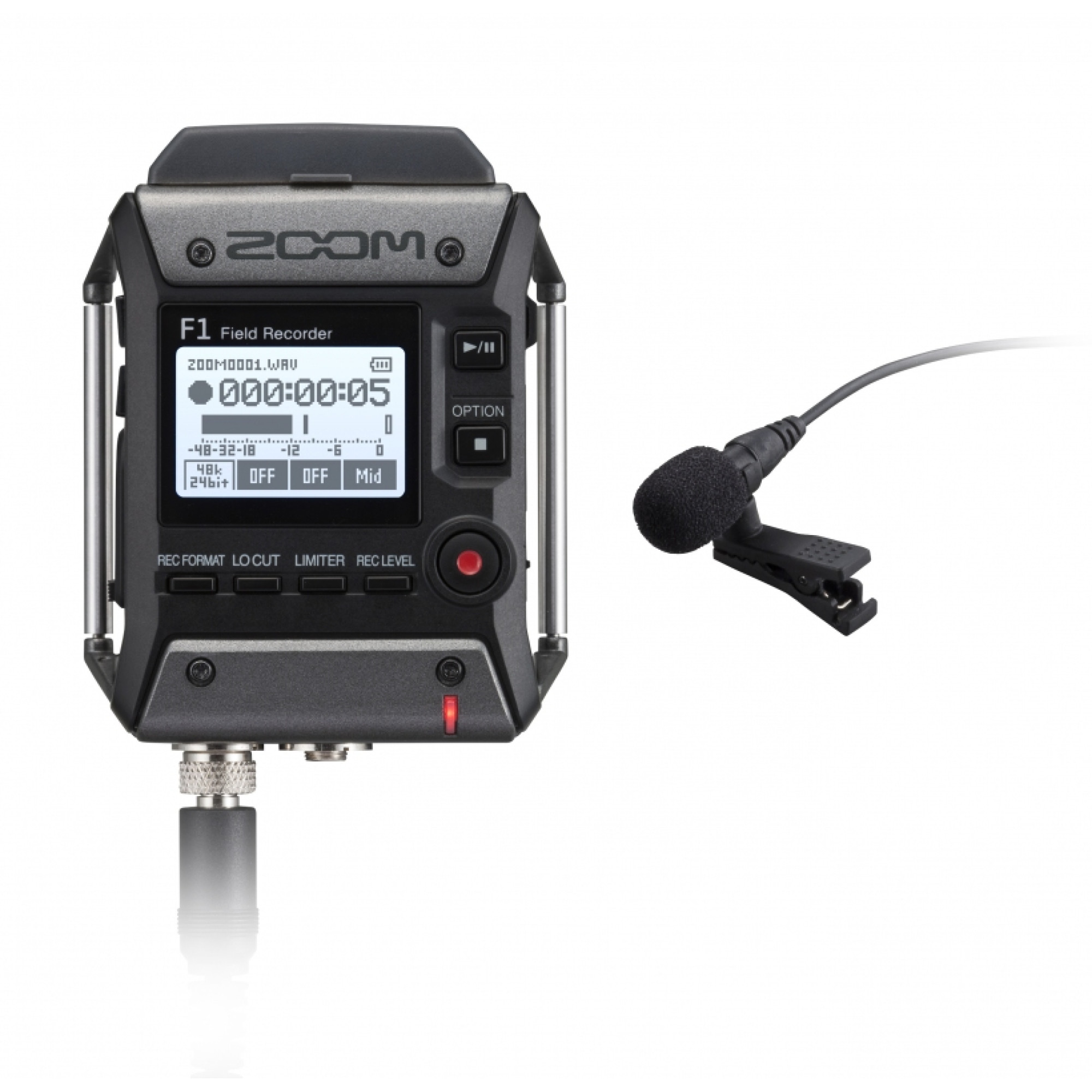

The F1-LP comes with Zoom’s newly engineered LMF-1 lavalier mic, designed for capturing every nuance. Combined with the F1, you can record high-resolution audio up to 24 bit/96 kHz, perfect for interviews, wedding vows, and more.

Low Profile Design

With its minimal profile, the F1 attaches neatly on belts, waistbands, or slipped into a pocket so the recorder can be easily concealed.

Worry-Free Recording

The LMF-1 Lavalier mic connects directly to the F1 and records to a micro SD card. By recording directly to the F1, interference or noise commonly experienced when using a wireless beltpack system is eliminated.

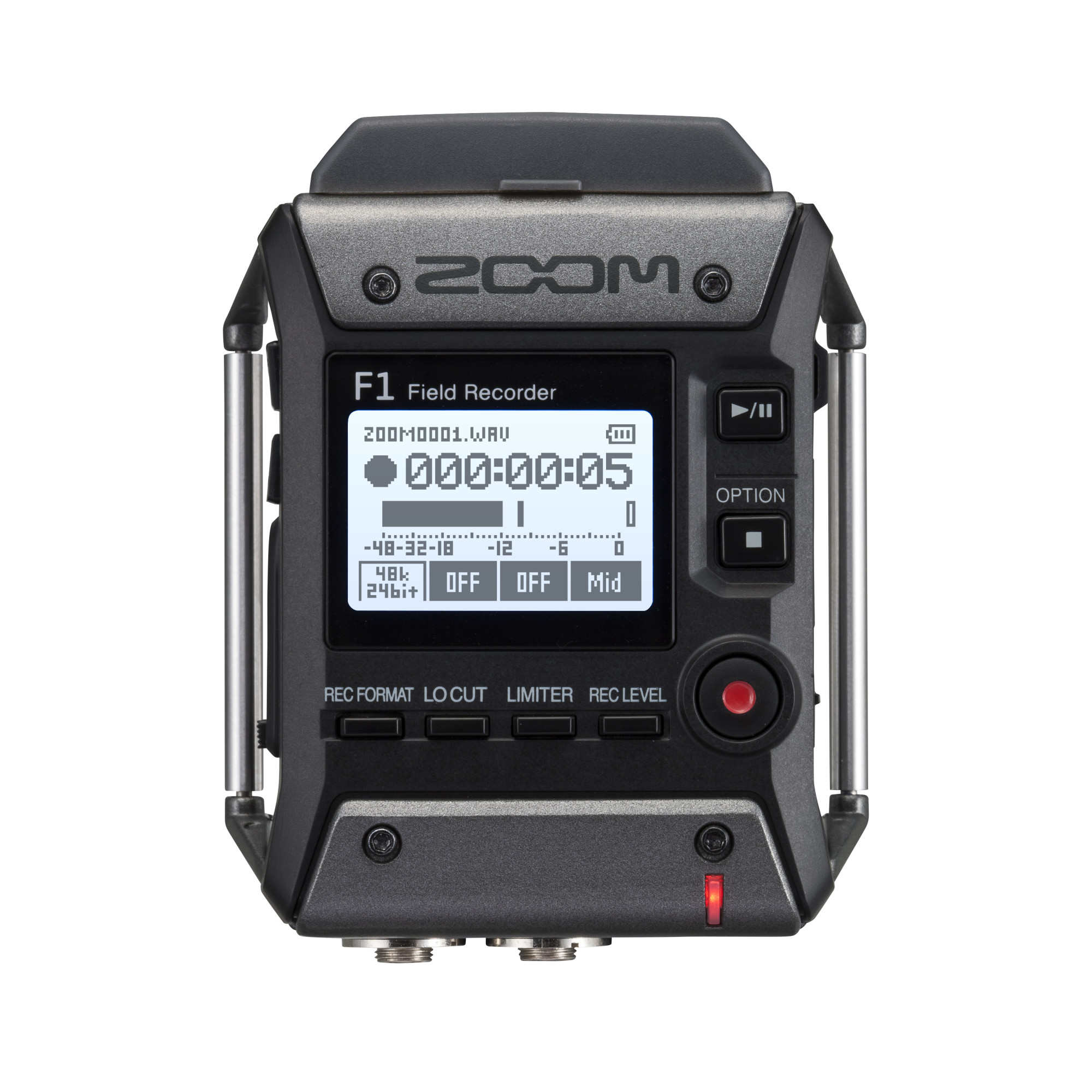

One-Touch Controls, Easy-To-Read Display

The F1’s one-touch buttons gives you easy access to record levels, limiter control, lo-cut filter and volume output. It’s newly designed monochromatic LCD display ensures visibility even in bright sunlight.

Essential Features for Videographers

• AUTO LOCK. The Record Hold function or the Hold Switch can be used to prevent your subject from accidentally hitting buttons while recording.
• NO CHANCE OF OVERLOAD. An on-board limiter and auto-level control keep your levels safe when spikes in loud volume occurs.

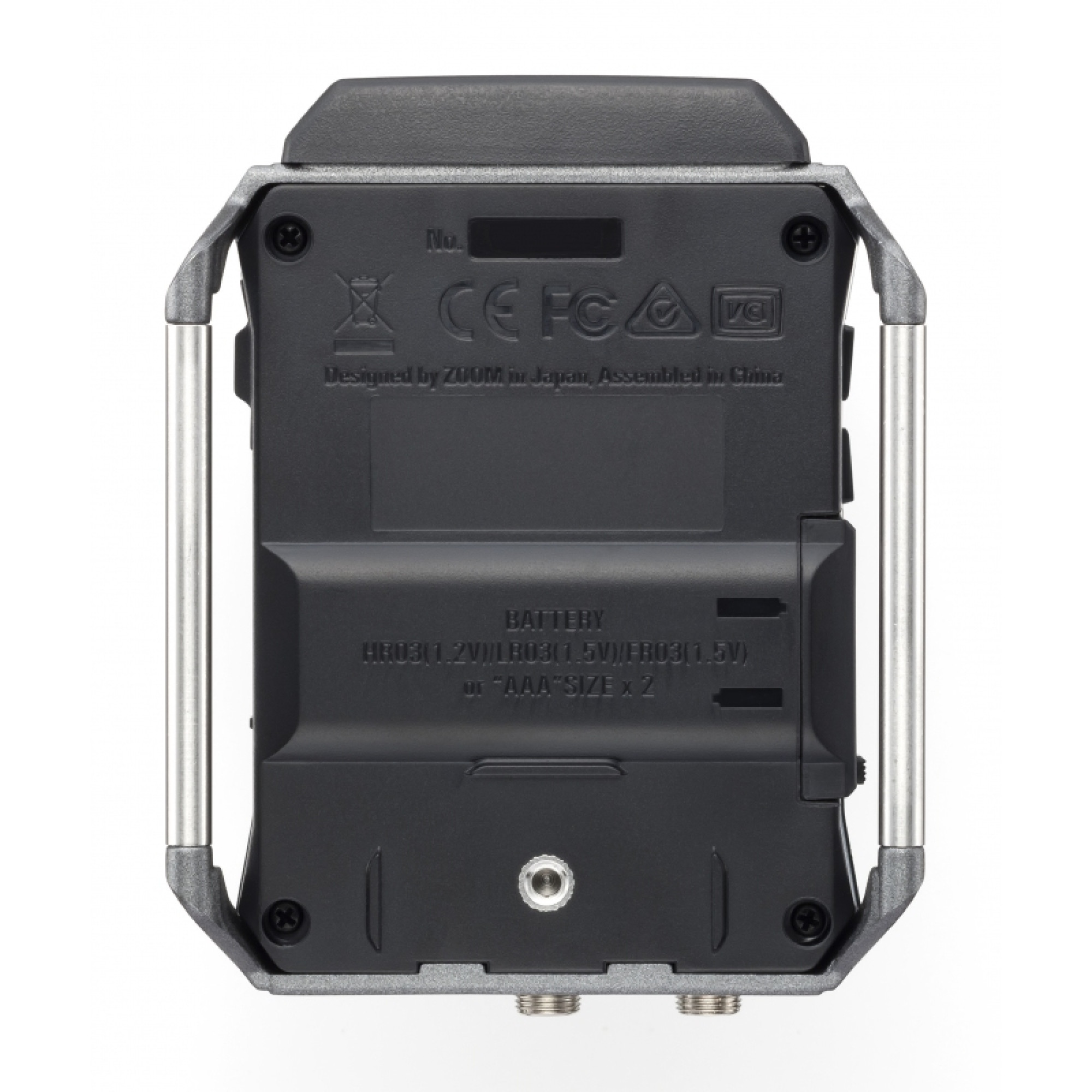

• CONVENIENT POWER SOURCES. The F1 can be powered using two AAA batteries (included) or with the optional AD-17 power adapter.
• USB CONNECTIVITY. Transfer recordings to your computer in card reader mode or record directly to your computer or iPad using the F1 in USB audio interface mode.

Record in Multiple Audio Formats

The F1 records audio in WAV or MP3 formats. WAV files are automatically time-stamped, making them Broadcast Wave Format (BWF)  compliant.

One Recorder, Multiple Mic Options

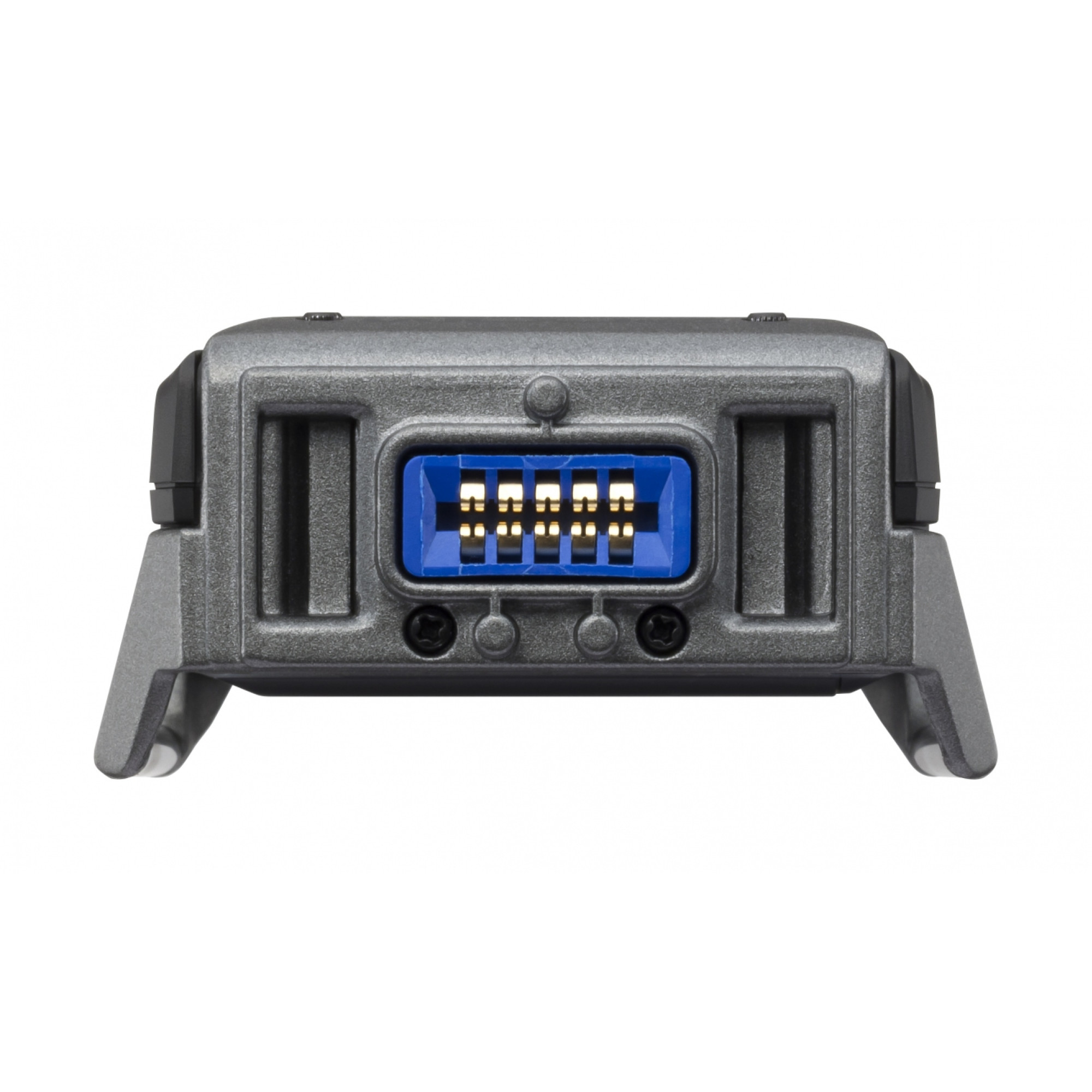

With our proprietary 10-pin connector, the F1 is compatible with all of Zoom’s interchangeable mic capsules, providing more options for recording.

• SSH-6: Stereo shotgun capsule with directional mic and adjustable side mic.
• XYH-6: Stereo X/Y Capsule with adjustable capsules.
• MSH-6: Stereo mid-side capsule with adjustable stereo width.
• XYH-5: Stereo X/Y capsule with shock-mounted microphones.
• EXH-6: Dual combo input capsule.
• SGH-6: Mono shotgun capsule with directional pickup.

Features

• Two-channel audio recorder
• Compatible with Zoom microphone capsules
• Supports up to 24-bit/96 kHz audio in BWF-compliant WAV or a variety of MP3 formats
• One-touch button controls
• 1,25” monochrome LCD display
• Rec Hold function to avoid accidental operation of buttons
• Stereo 1/8" Mic/Line In mini phone jack with Plug-in power (2,5 V)
• Stereo 1/8" Phone/Line Output jack with dedicated volume control
• Built in limiter and auto level control to avoid clipping
• Pre-Record function
• Tone generator for calibrating audio levels between the F1 and a DSLR or video camera without the need for an attenuator cable
• Sound marker function that outputs quick tone to make syncing audio and video easy
• Records directly to micro SD and SDHC cards up to 32 GB
• Micro USB port for data exchange to and from computer and use as an audio interface with computer or iOS device
• Runs on only 2 standard AAA alkaline, Lithium, or NiMH rechargeable batteries, or AC adapter (AD-17)
• Up to 10 hours of operation with alkaline batteries (when using lavalier)

What's included with the F1-LP

• F1 Field Recorder
• LMF-1 Lavalier microphone
• WSL-1 Windscreen
• MCL-1 Mic clip
• BCF-1 Belt clip
• 2 AAA batteries
• Quick guide

User manual
